Gravon · Commute × Trail

Gravon

The Aceoffix Gravon folding bike — 18-inch trail tyres, dual-ceramic-piston hydraulic disc brakes, 10-speed wide-range. The Melbourne folder that doesn't make you choose between Monday and Saturday.

8.5 kg18"Hydraulic disc

From

$2,499 AUD

Book a Test Ride

Best for

Rougher roads and longer rides. Bigger wheels, hydraulic discs, ten gears.

At a glance

Weight
8.5 kg
Wheelset
18-inch centre-lock straight-pull wheelset
Drivetrain
ACEOFFIX 10-speed derailleur (11-34T)
Brakes
Hydraulic disc

Try it beside the other models before you decide.

Complete bikes are purchased in store after a test ride. In-stock bikes are usually ready for collection within 1–3 business days.

Bike Orders & Returns Policy

Product brief

The case for Gravon

01

The Gravon is the answer to the question every folder owner eventually asks: "what if I want to ride it further than just the commute?" 18-inch wheels with Kenda off-road tread, an ACEOFFIX 10-speed wide-range cassette (11-34T), and a properly dialled hydraulic disc setup.

02

Every other model in the LMile range uses cable-pull rim callipers. The Gravon is in a different braking class — a vertical-cylinder, four-bearing-pivot, dual-ceramic-piston hydraulic disc on centre-lock rotors. On wet Melbourne descents the difference is obvious.

03

Single colourway at launch: Titanium Grey. Weekend off-road riders, audax-curious commuters, anyone who wants one bike that does both: Gravon.

15-minute Melbourne test ride

Workshop setup before handover

5-year frame and fork warranty

WHY THIS ONE

Design details

Each card ties the riding benefit to the component that creates it.

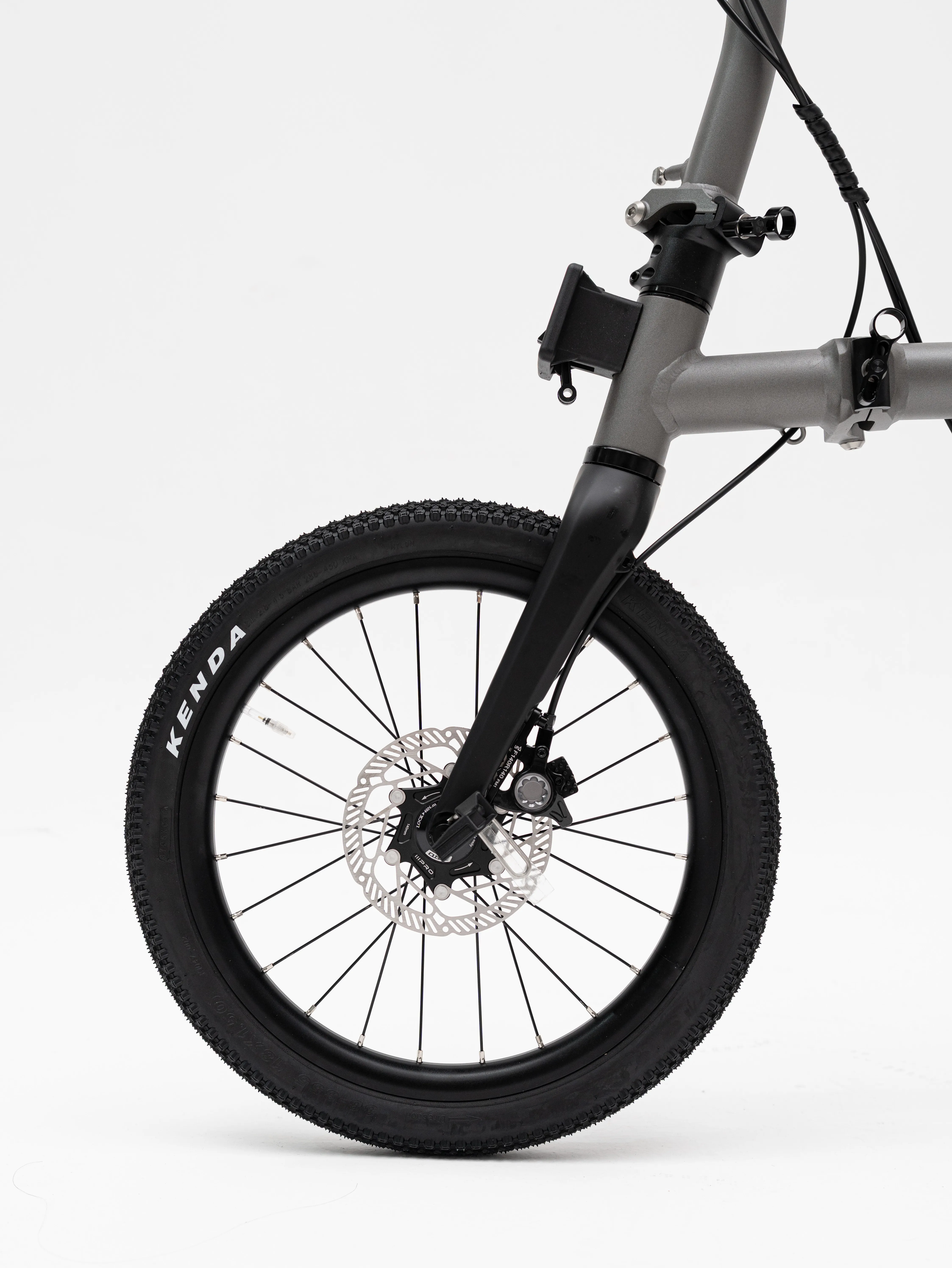

Gravon front wheel detail — hydraulic disc brake rotor and Kenda 18-inch trail tyre

01.

Hydraulic disc, four-bearing pivot

A real trail brake, not an upgraded rim calliper. Confident in rain and on long descents.

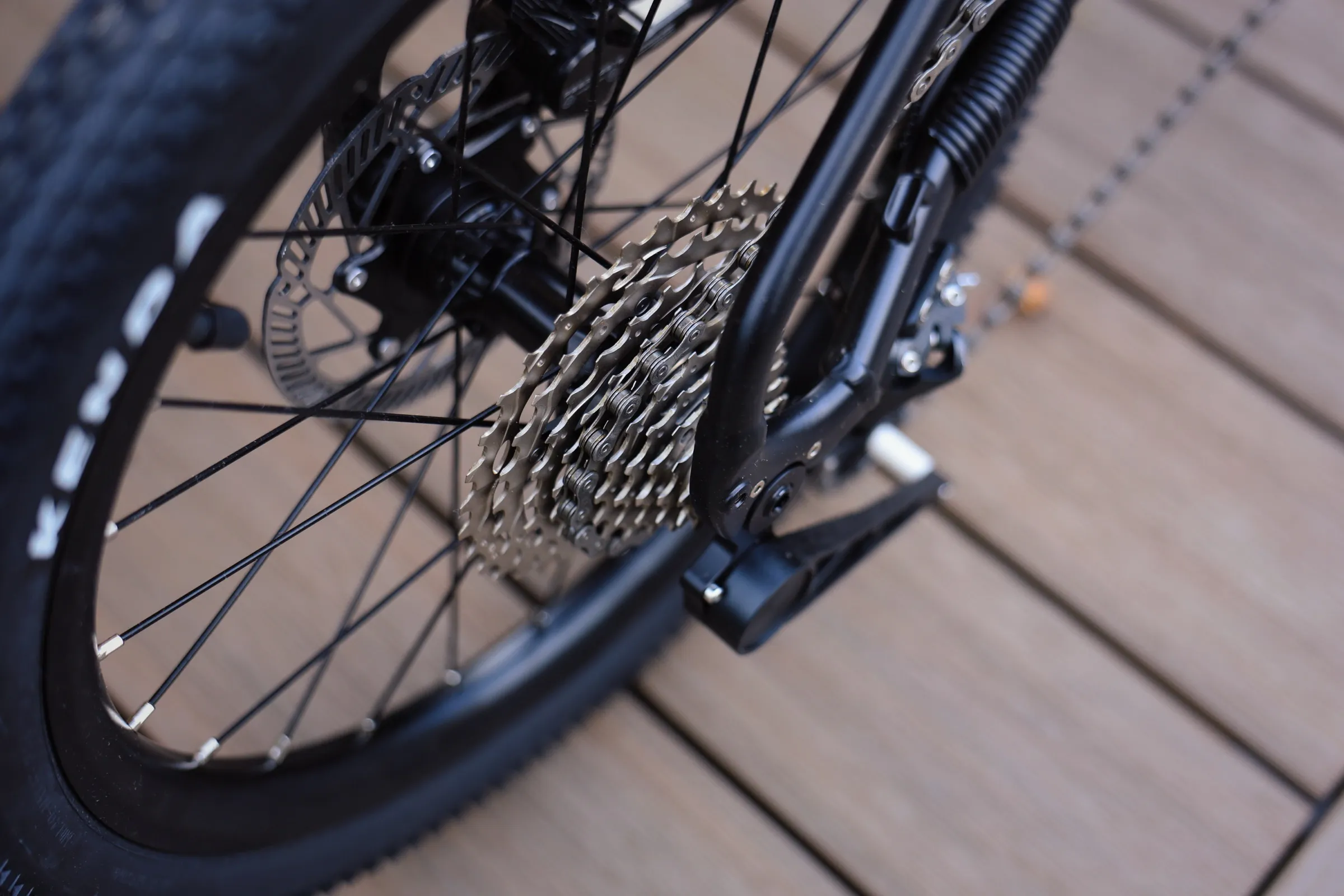

Gravon 10-speed cassette and rear derailleur detail, photographed close up in natural light

02.

10-speed wide-range 11-34T

Climb the Capital City Trail, spin home on the flat. One cassette covers it all.

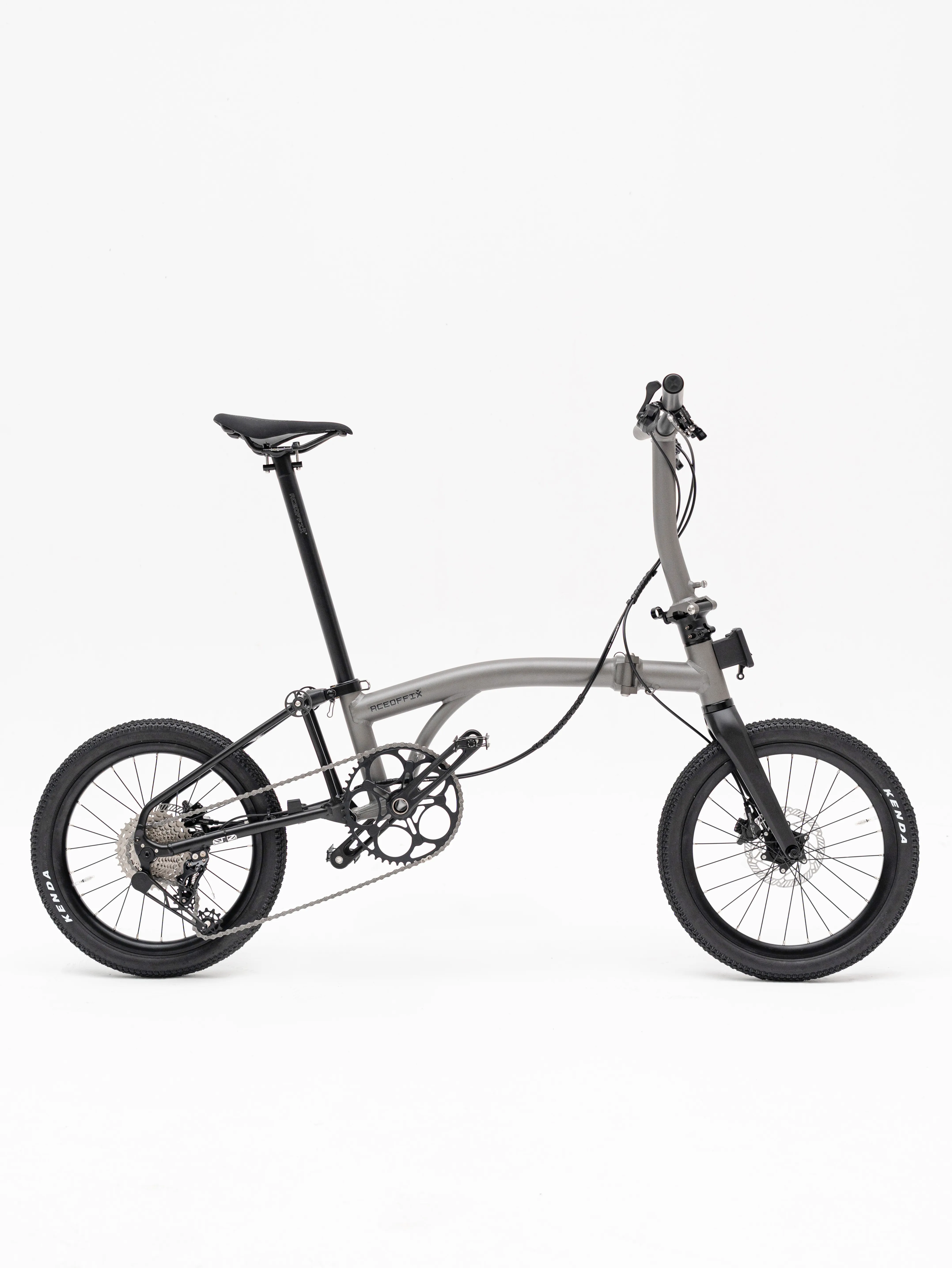

Gravon unfolded side profile, showing the 18-inch Kenda wheelset and trail tyre stance

03.

18-inch Kenda off-road tread

Folds smaller than you would think, rolls over kerbs and rough paths without complaint.

FULL SPEC

Weight
8.5 kg
Wheelset
18-inch centre-lock straight-pull wheelset74 mm front / 142 mm rear spacingquick-release front, thru-axle rear
Tyres
Kenda 18-inch knobby off-road
Drivetrain

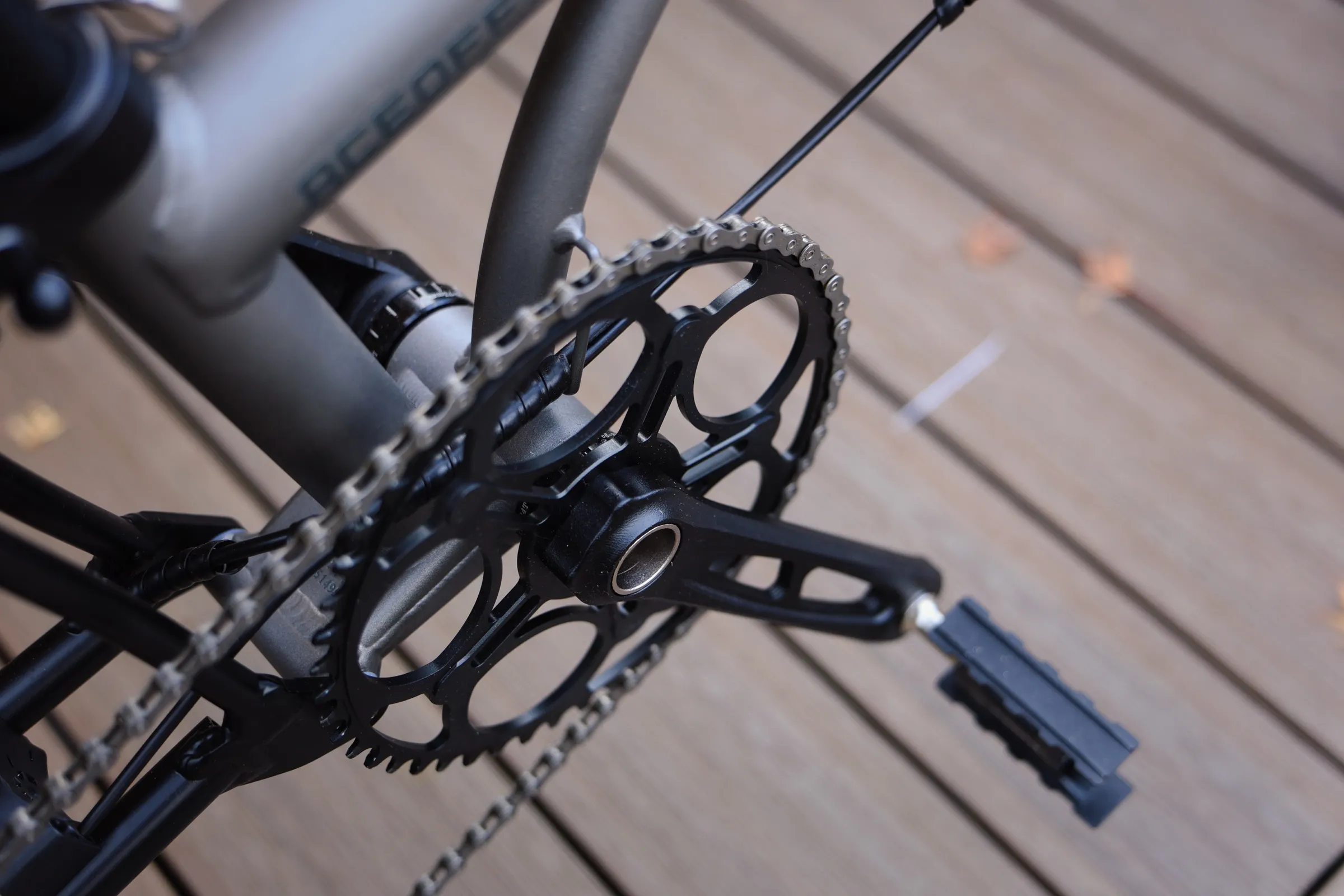

ACEOFFIX 10-speed derailleur (11-34T)ultralight CNC hollow one-piece crank50T alloy chainring
Frame

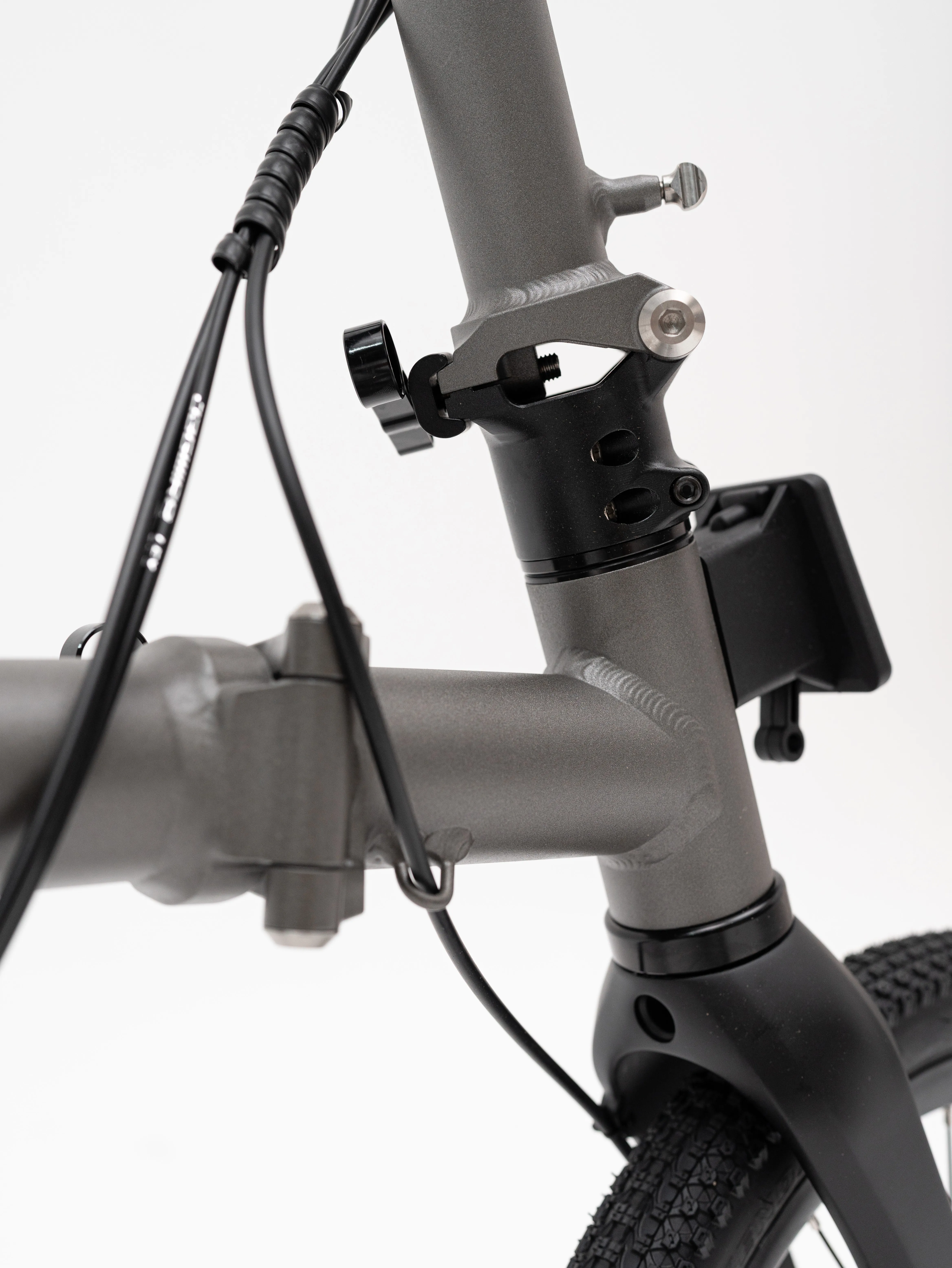

6069 aluminium disc-brake frameT800 carbon fork, tapered steererfour-bolt clamped head tube
Brakes

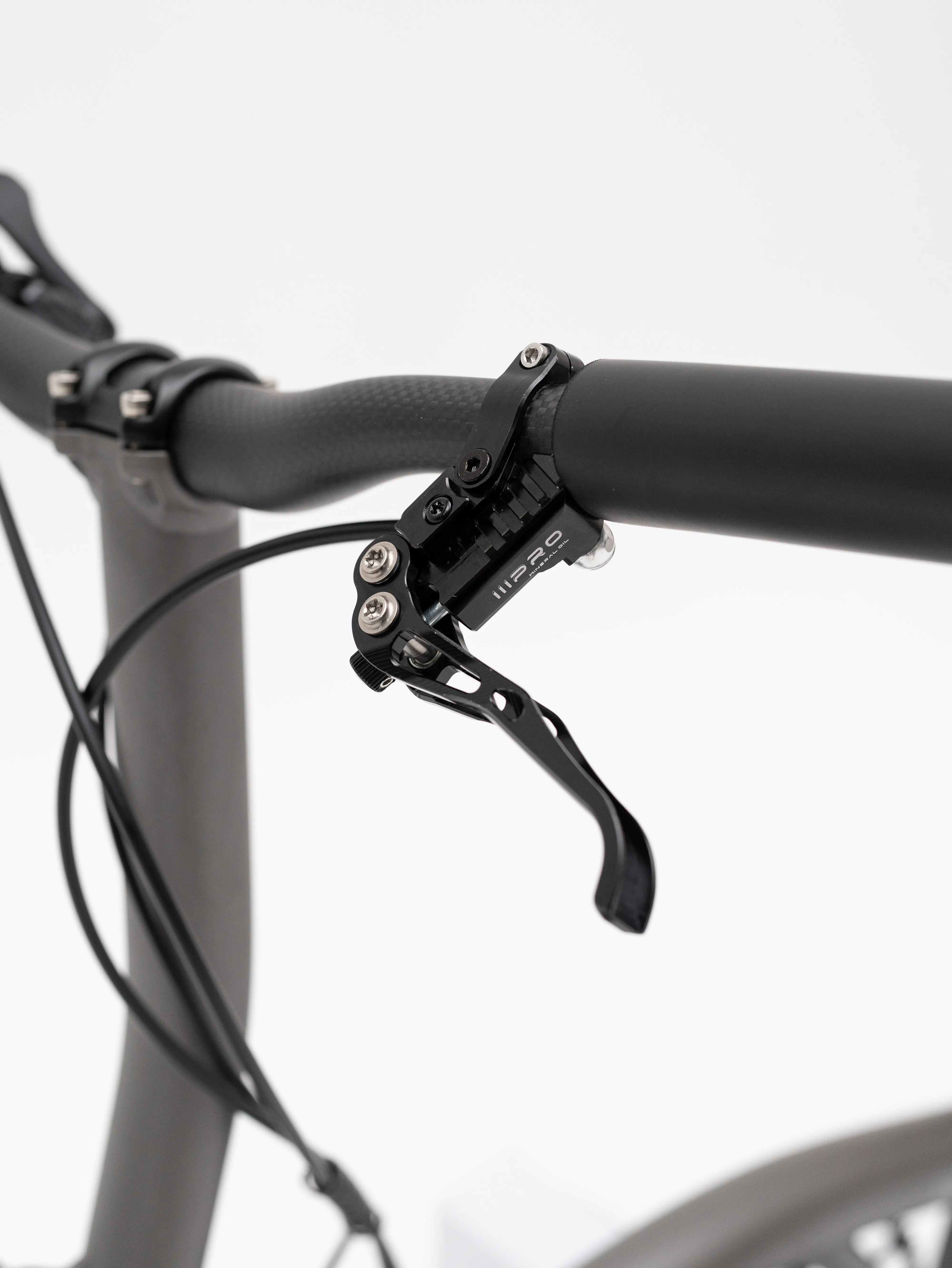

Hydraulic discvertical-cylinder, four-bearing pivot, dual ceramic pistonscentre-lock rotors with alloy carriers
Handlebar
H30 carbon riser bar (30 mm rise, 31.8 mm clamp)
Saddle / seatpost

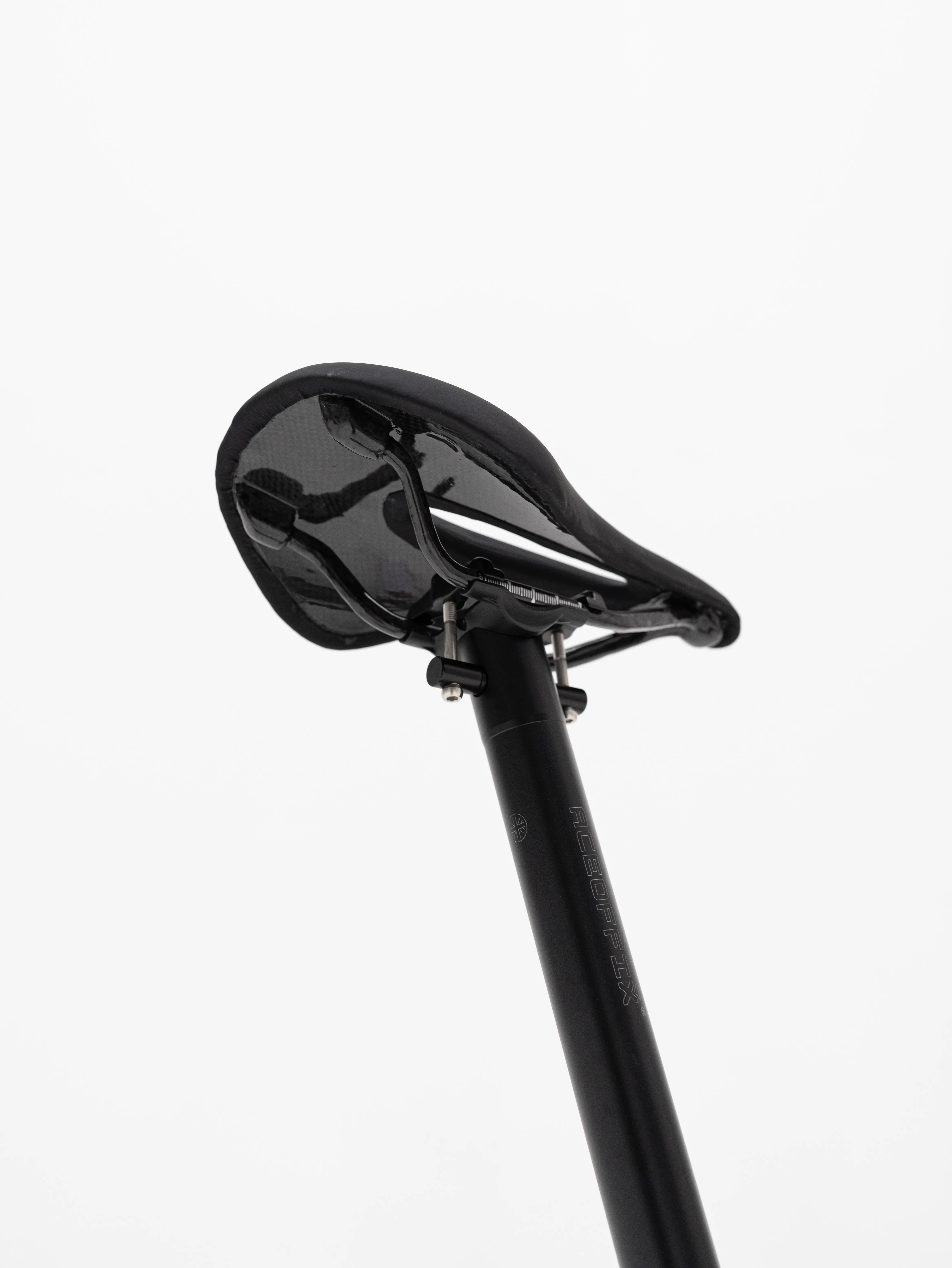

Carbon-fibre saddletwin-bolt micro-adjust alloy seatpost
Carrier block / easy wheels
Plastic front carrier blockcarbon-fibre easy wheels
Colourways
1 — Titanium Grey (single colourway at launch)
Max load
110 kg (rider + luggage)
Dimensions
Unfolded 1500 × 990 mmfolded 730 × 640 × 350 mm (L × H × W, factory reference)
Warranty
5 years frame & fork12 months drivetrain

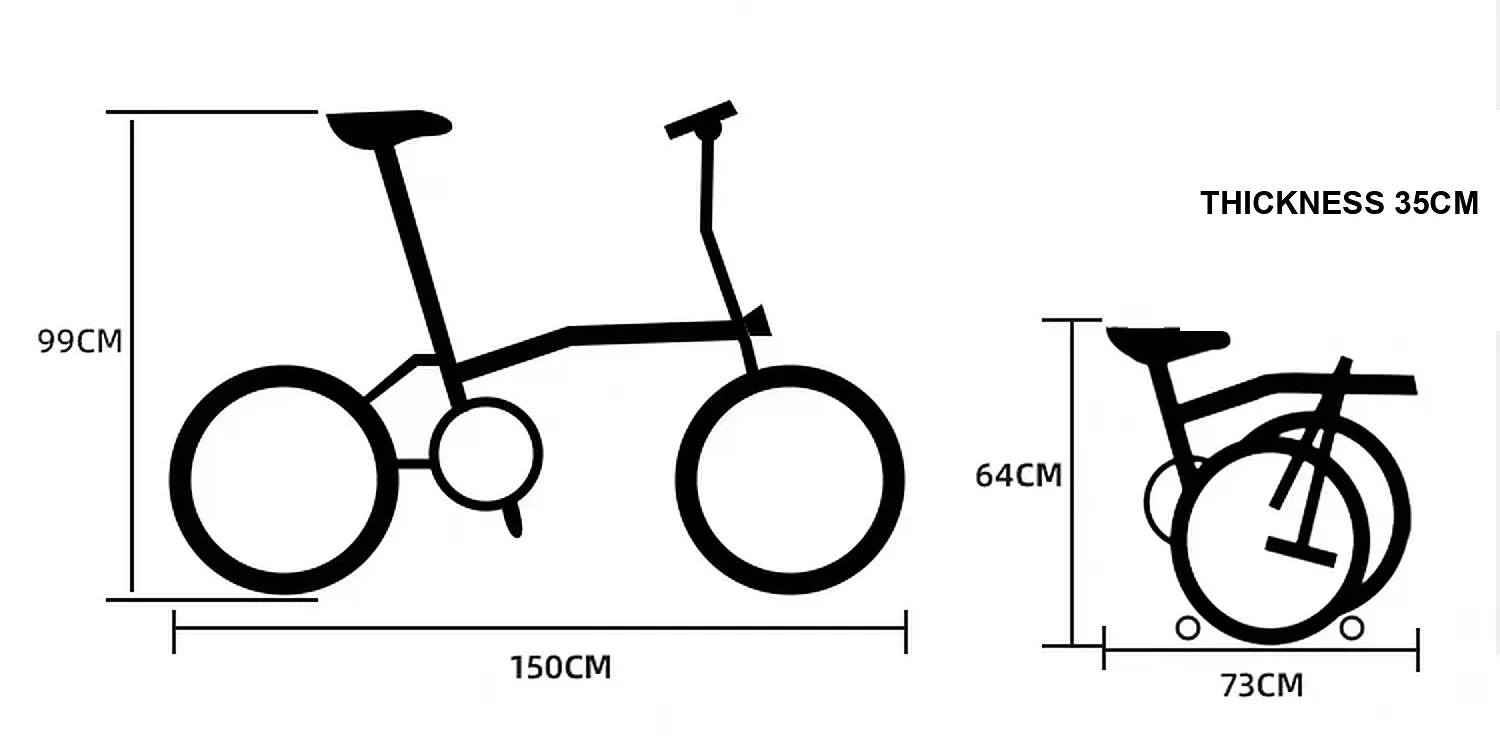

Dimensions

Gravon footprint, unfolded and folded

Factory reference measurements. Final setup, saddle height, and accessory position can shift the measured footprint slightly.

Gravon folding bike dimension diagram

HOW IT COMPARES

See how it stacks up

Weight
8.5 kg
9 kg
7.5 kg lightest
Wheels
18"
16"
16"
Gears
10-speed
5-speed
5-speed
From
$2,499 AUD
$1,499 AUD best price
$2,199 AUD

Try the Gravon in person

15 minutes, free, water on the bench. Decide after you ride.
